Amcrest 8-Port Switch with 4-Ports POE+ 802.3af/at 60W, Metal Housing, (AGPS8E4P-AT-60-V2)

SKU:
AGPS8E4P-AT-60-V2
UPC:
850011990803

GIGABIT/POE SWITCH FEATURES:



  • Data Transmission: Port 1-4: 4 × RJ-4510/100/1000 Mbps (PoE), Port 5-8: 4 × RJ-45 10/100/1000
  • Power Supply: 48 V–57 V DC
  • Power Consumption: Idling: 3W, Full load: 60W
  • Communication Standard: IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3X
  • PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE
  • PoE Power: 60W
  • Switching Capacity 20Gbps
  • Packet Forwarding Rate: 11.9Mbps
  • Packet Buffer Memory: 1.5Mb
  • MAC Table Size: 8K
  • Flow Control: Enabled by default
  • Storage Humidity: 5%–95% (RH)
  • Static Protection: Air discharge: 8 kV; Contact discharge: 6 kV
  • Thunder-Proof: Command Mode: 2KV, Differential Mode: 0.5KV
  • Working Temperature: 14°F ~ 131°F
  • Dimensions: 7.5 x 3.9 x 1.18 inches
  • Weight: 1.08 lbs.
  • Regular Price $89.99 Special Price $84.99 6%
    Free Shipping within the continental US except outlying US Territories

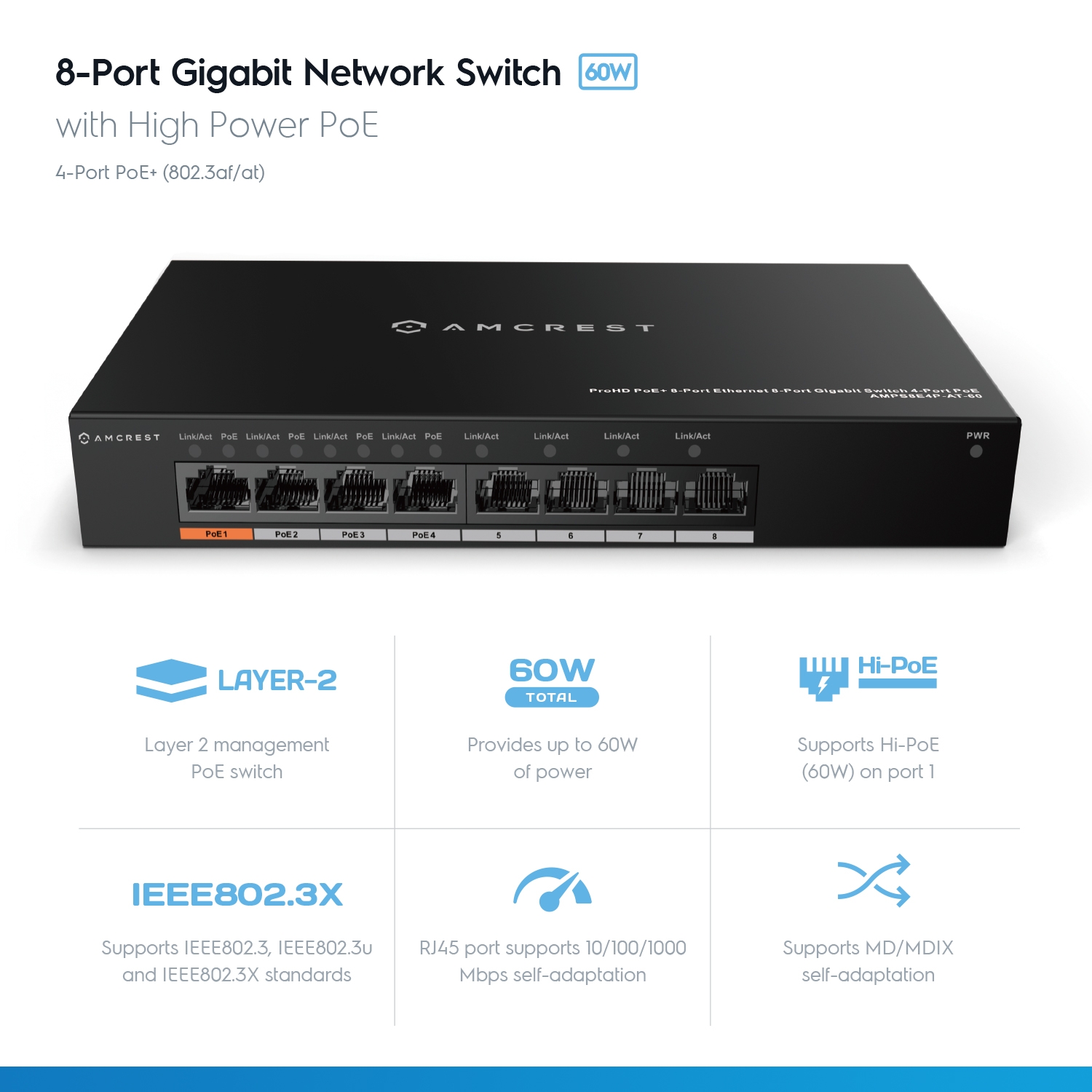

    8-Port Switch with 4-Ports PoE+

    The Amcrest AGPS8E4P-AT-60-V2 is an 8-Port Gigabit Switch with one 10/100 Base-T Ethernet Port and 4x 10/100/1000 Mbps PoE+ Ports. Supports Hi-PoE (60W) on Port 1, Supports Ports 2-4 30w power to each POE port (POE+ 802.3at), Total 60W.

    Layer 2 Management PoE Switch

    Data Transmission: Port 1-4: 4 × RJ-4510/100/1000 Mbps (PoE), Port 5-8: 4 × RJ-45 10/100/1000
